Astrobe for Cortex-M7 Source Code

ARM Oberon Development System for Windows
Version 9.0 Copyright © 2006-2023 CFB Software
Email: support@astrobe.com
Website: www.astrobe.com

Last Updated 2 Nov 2023

Oberon Examples

The source code of these examples is located in your AstrobeM7-v9.0\Examples folders. You will find additional source code examples on the Astrobe Forum.

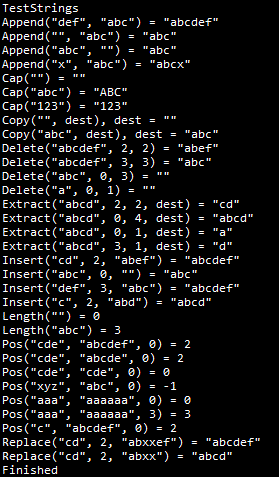

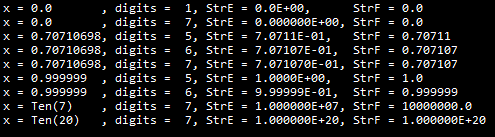

The example programs which are shown with screenshots below use the Astrobe Out library module to generate text output and send it via a UART port on the development board to a COM port on the PC where it is displayed on the Astrobe terminal window. The examples have been tested on the supported Cortex-M7 development boards. They allow the serial communication to be performed via a virtual COM port using a USB cable to connect the board to the PC.

Filename Description

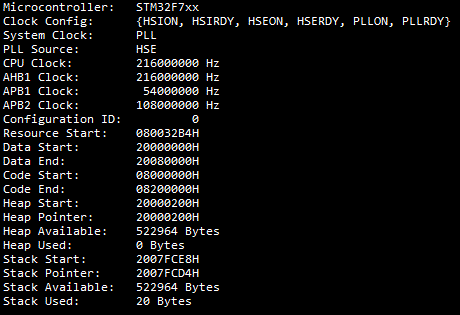

Info.mod System Info
Outputs the clock configuration, linker and startup parameters specified for the current application and shows the amount of RAM remaining for use by the program.


ViewMemory.mod ViewMemory

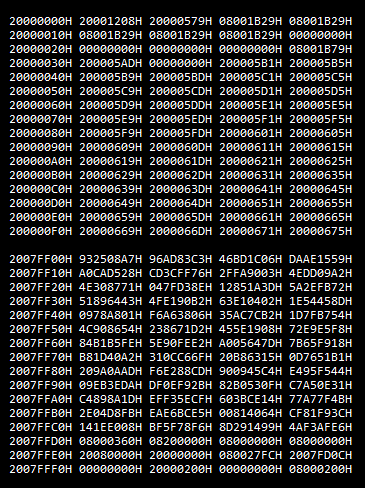

Outputs the contents of the first 64 words of memory starting from address Data Start and then the last 64 words of memory up to address Data End. Each line of output contains the address and the contents of the next 4-word block of data displayed in Hexadecimal format.


TestTraps.mod TestTraps

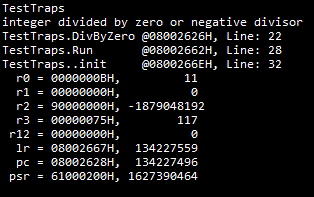

Demonstrates the trapping and display of runtime errors.

UserTraps.mod UserTraps
Demonstrates the trapping and user-defined display of runtime errors.

CycleCount.mod
Performance.mod
Performance
Shows how the number of instruction cycles can be counted for a section of code. Compares the relative performance of leaf and non-leaf procedures for WHILE, REPEAT and FOR loops.

ByteArrays.mod ByteArrays

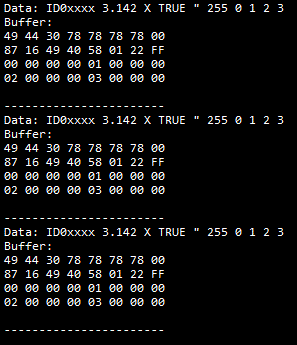

Demonstrates the use of variables declared as ARRAY n OF BYTE to simplify and optimise the code required for tasks such as de-serialising / serialising complex data structures for Input / Output operations.

Extensions.mod
ExtensionsCase.mod
ExtensionsProc.mod
Lists.mod
Extensions
Shows three different ways to use Oberon's Type Extension feature to create and scan a dynamic list of a variety of objects.

Lists

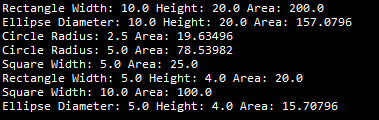

contains the generic functions to build and traverse a list of objects. Extensions contains definitions for a number of related objects. The examples used are shapes e.g. circles, rectangles etc. The application first builds a list of different shapes and then scans the list displaying the relevant dimensions and area of each shape.



Extensions uses the IS operator to perform the type tests in association with type guards.

ExtensionsCase
uses a CASE statement to perform the type tests and selections.

ExtensionsProc uses procedure variables as record fields to perform type-specific actions for the different record extensions.
Blinker.mod Blinker
Blinks an LED once per second using a timer. You may have to change the pin configuration-related statements depending on which pins your LEDs are connected to. See the Getting Started section of the Astrobe Help file for more information.
IRQBlinker.mod
IRQTimer.mod
IRQ Blinker
LED blinks approx. once per second as a result of interrupt requests (IRQ) generated by a timer.
ShowTime.mod
RTC.mod
Time.mod

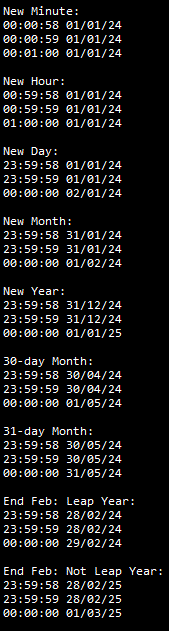

Set and Display the Real Time Clock
Prompts for the input of the current time (hours, minutes and seconds) and then displays the updated time every second.

SlideDemo.mod
Slide.mod
IO.mod
Graph.mod
ST7735.mod
Columbia.mod
Columbia.res
StPauls.mod
StPauls.res
AutoCAD Slide Drawing
Uses the Astrobe Graphics line-drawing functions to display AutoCAD Slide images of St Paul's Cathedral and the space shuttle on an AdaFruit 1.8" TFT Display.

TextDisplay.mod
Display.mod
Font.mod
ST7735.mod

Text Display
Write line-oriented output on an AdaFruit 1.8" TFT Display.

Temperature.mod
I2CConfig.mod
Time.mod
I2C Temperature Logger

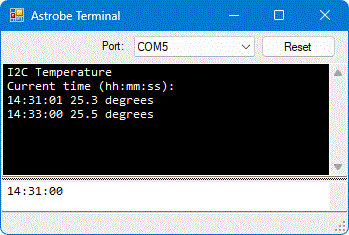

Measures the current temperature via the I2C bus using a Texas Instruments TMP102 sensor. This sensor is available on the convenient SparkFun SEN-13314: TI Digital Temperature Sensor Breakout. The temperature is checked every second using the Real Time Clock. The current time and temperature is displayed whenever the temperature changes.


HCTest.mod
HCConfig.mod
HCDir.mod
HCfiles.mod
HCDrive.mod

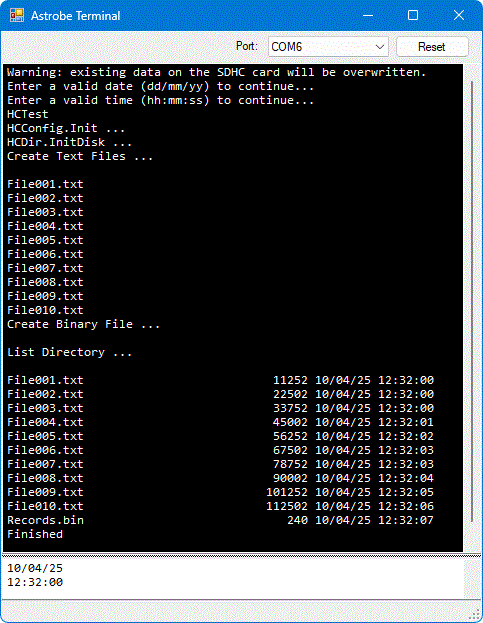

HCFiler Filesystem: HCTest
Initialise an HCFiler filesystem and create a number of test files on an SDHC Card accessed via SPI.

HCReadSpeed.mod
HCConfig.mod
HCDir.mod
HCDrive.mod
HCFiler Filesystem: HCReadSpeed
Time SDHC card sector reading speed on an HCFiler filesystem accessed via SPI.

DRAMTest.mod DRAM Test
Tests 4164 64kbit DRAM chips for a variety of failures. It has been used on retrocomputing projects and could be modified to test other types of RAM chips.
